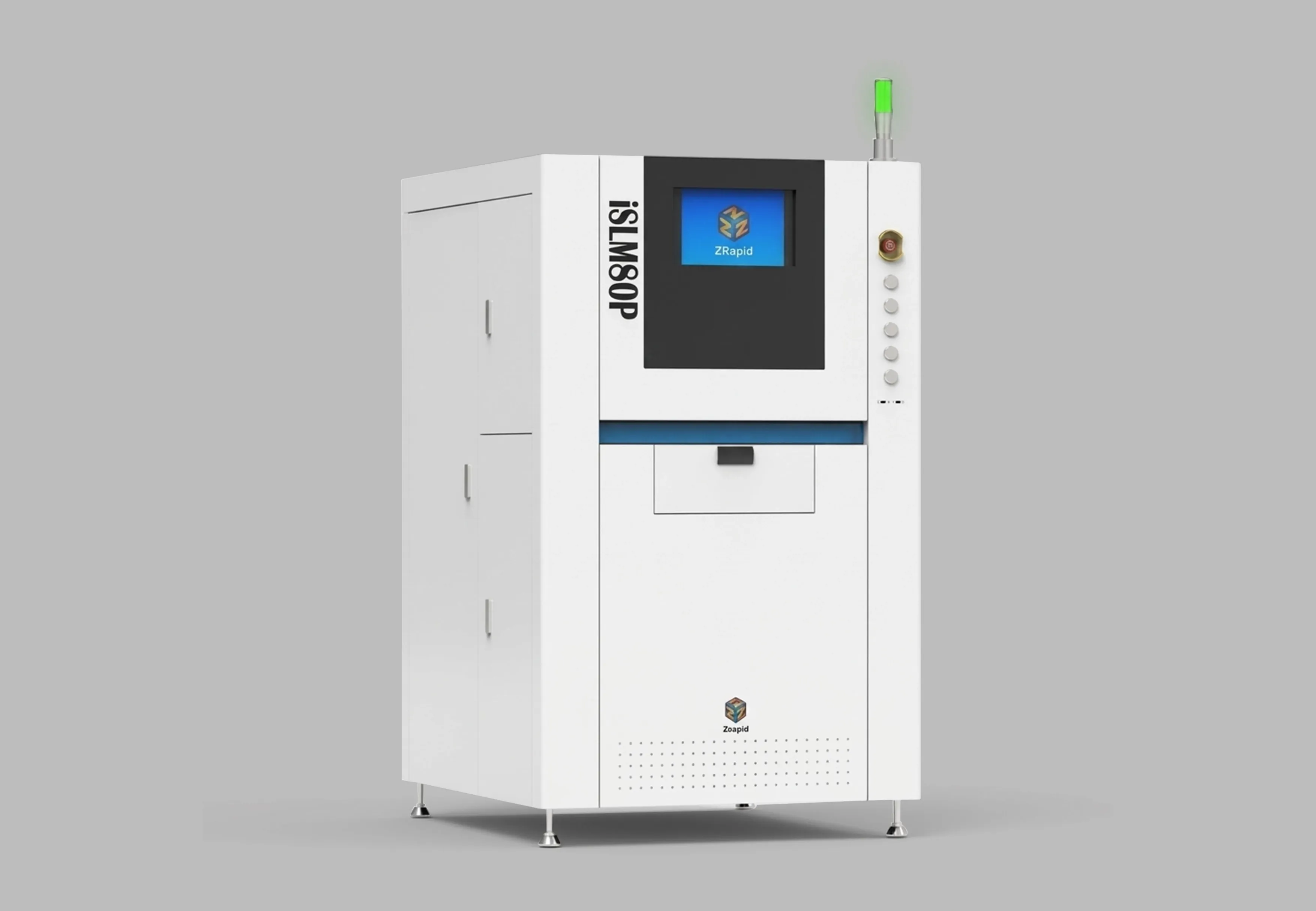

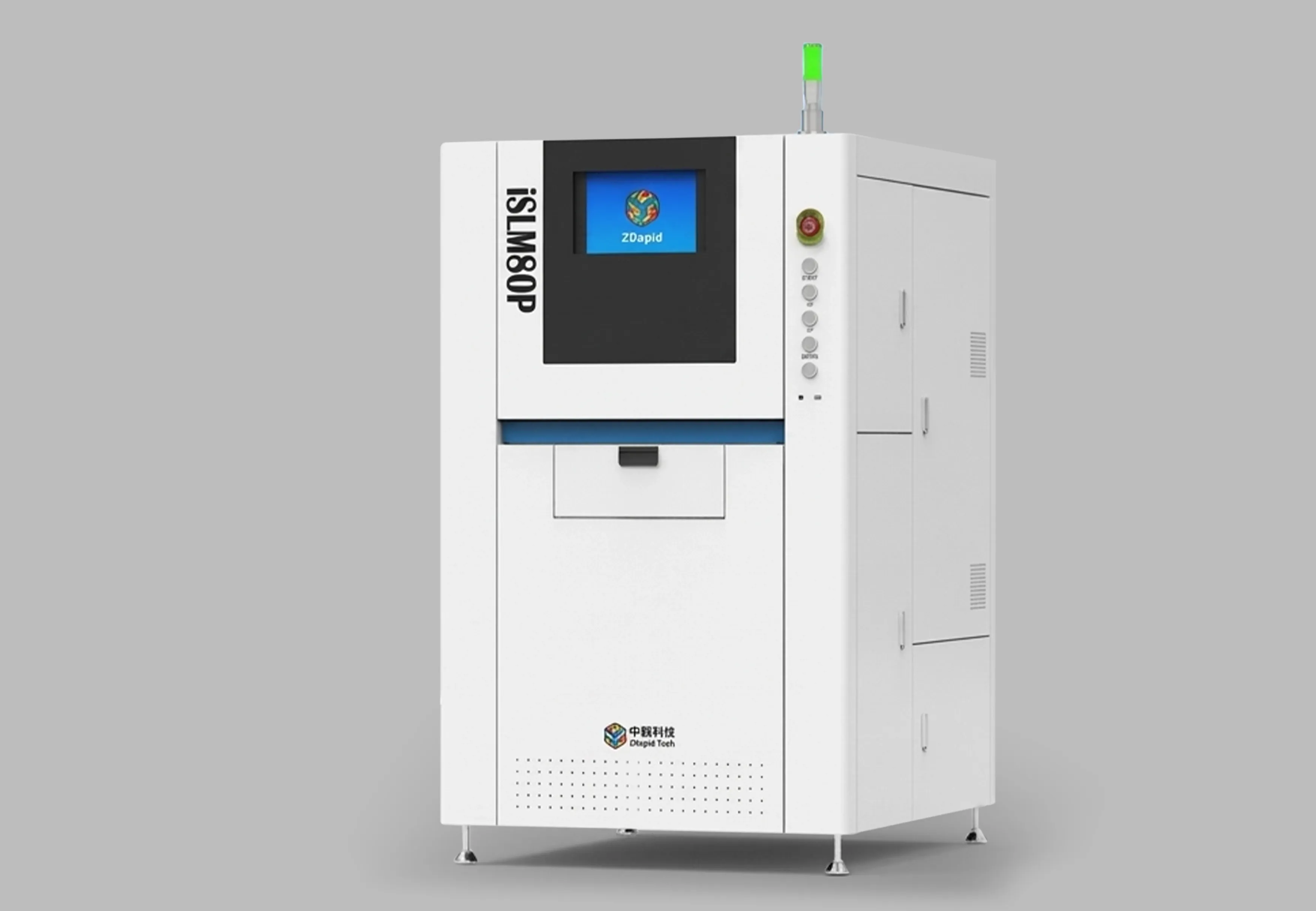

The SLM 80P 3D printer utilizes Selective Laser Melting (SLM) technology, a process that involves melting metal powders and solidifying them layer by layer to create three-dimensional parts. Within the build chamber, a metal powder layer is evenly spread by a roller. A high-powered laser selectively fuses the powder by tracing the part's cross-section on the powder bed's surface. Subsequently, a new layer of material is applied for the next stage. To prevent unwanted reactions between the metal powder and oxygen at high temperatures, the entire process takes place in a controlled environment, typically within a high vacuum or a chamber filled with protective gas.
The entire manufacturing process takes place within a controlled atmosphere chamber filled with protective gas to prevent oxidation and ensure material integrity at high temperatures. This technology enables the production of complex, lightweight, and high-strength metal parts with excellent dimensional accuracy and surface quality, making the SLM 80P suitable for aerospace, medical, defence, and industrial applications.
| LASER SYSTEM |
Type: Fiber laser Wavelength: 1060nm Power: 100W/200W |
|---|---|
| RECOATING SYSTEM |
Flexible Adaptation: Supports various project scales, from micro-structures to engineering Normal Build: 0.05mm Quick Build: 0.05~0.15mm Precision Build: 0.02~0.05mm |
| OPTICAL & SCANNING |
Beam (diameter@1/e2): 0.06~0.20mm Scanning Galvanometer: High Speed Scanning Galvanometer Parts Scanning Speed: 1.0~4.0m/s (recommended) Blank Jumping Speed: 10.0m/s (recommended) Reference Building Speed: 15~50cm³/h |
| SHIELD SYSTEM |
Protective gas: Nitrogen (N₂) / Argon (Ar) (Active metal materials must be protected with Argon) Flow Control: 0~3 L/min intellient adjustment dust extraction control: High efficiency Protection recycling system |
| BUILD VAT |
Volume: Approx. 80L XY Platform: 420mm(X) × 420mm(Y) (Screw hole, rounded, etc. are not calculated) Z Axis; 500mm(Including substrate thickness) Max Weight: 150kg Type: Precision resistor heater Materials: Stainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy etc. |
| SOFTWARE |
Operating System: Windows 10Pro Network: Ethernet, TCP/IP, IEEE802.3 Control Software: iSLM(Presto SLM) Date Preparation Software: 3dLayer Data Interface: CLI file, SLC file, STL file |
| INSTALLATION CONDITION |
Power: 380V(±10%) AC 50/60Hz, single-phase, 5/20A Ambient Temperature: 20-26ºC Relative Humidity: Less than 40%, non-condensing Size: 2.65m(W)×1.45m(D)2.70m(H)(Operating computer is not included) Weight: Approx. 2800kg |
| WARRANTY |
Laser: 8000 hours or 23 months (whichever comes first) Main Machine: Two (2) from installation date |
