Industrial 3D Printers

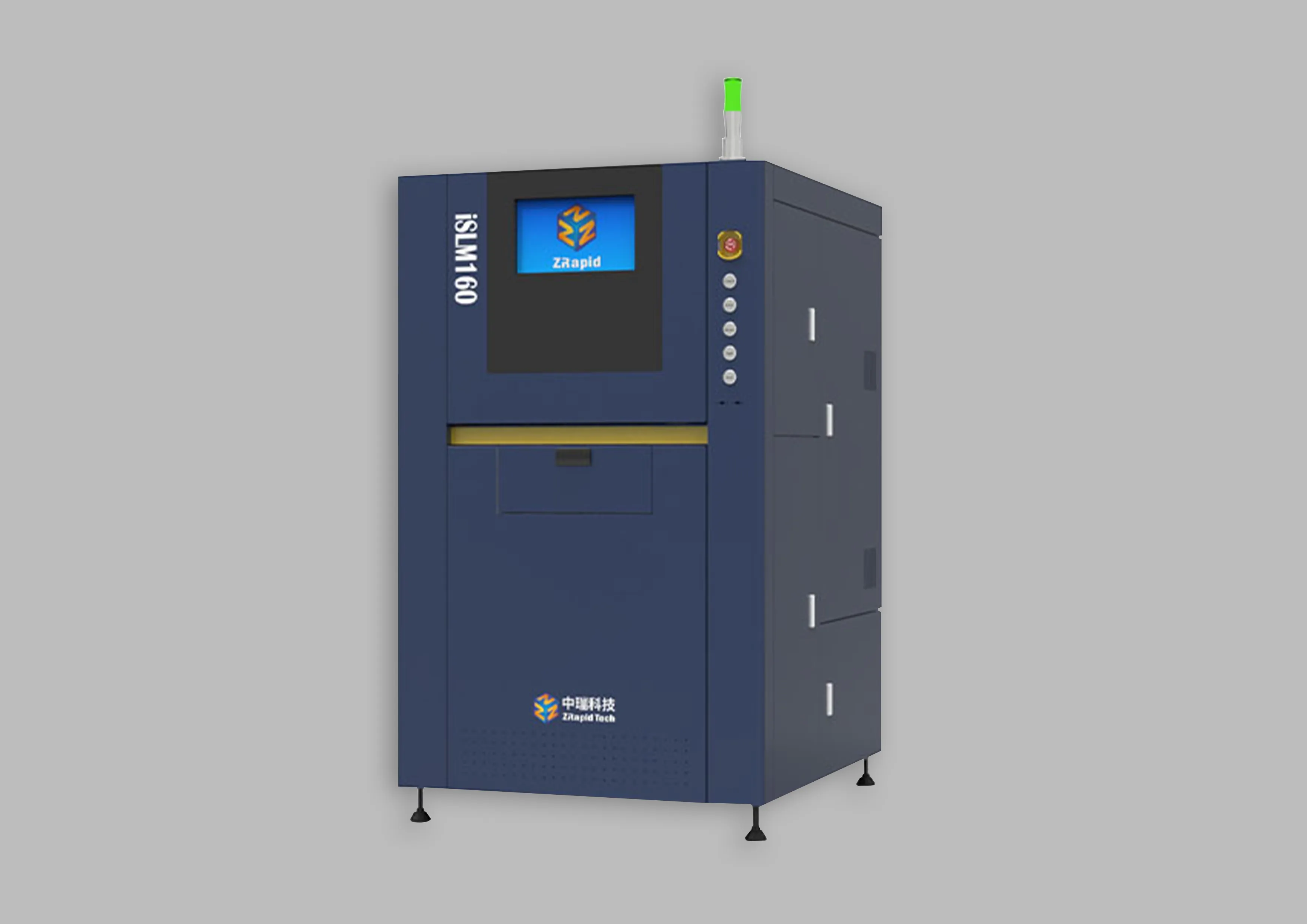

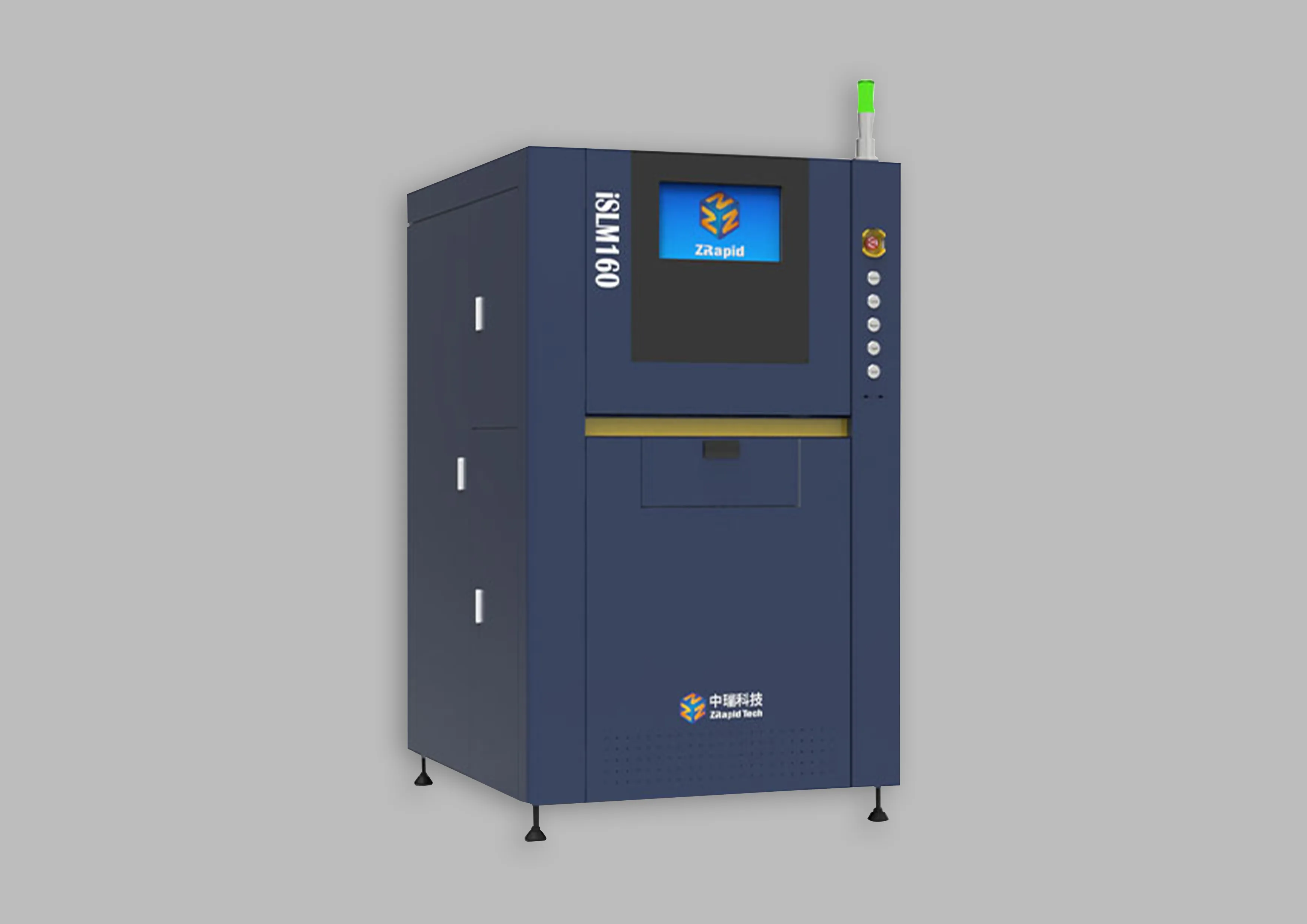

SLM - 160

Selective Laser Melting

The SLM 160 3D printer utilizes Selective Laser Melting (SLM) technology, a process that involves melting metal powders and solidifying them layer by layer to create three-dimensional parts. Within the build chamber, a metal powder layer is evenly spread by a roller. A high-powered laser selectively fuses the powder by tracing the part's cross-section on the powder bed's surface. Subsequently, a new layer of material is applied for the next stage. To prevent unwanted reactions between the metal powder and oxygen at high temperatures, the entire process takes place in a controlled environment, typically within a high vacuum or a chamber filled with protective gas.

Technical Information

LASER SYSTEM

Type: Fiber laser

Wavelength: 1064nm

Power: 200W / 500W

RECOATING SYSTEM

Process: scraper paving

Normal Build: 0.05mm

Quick Build: 0.05~0.10mm

Precision Build: 0.02~0.05mm

OPTICAL & SCANNING

Beam (diameter@1/e2): 0.04~0.15mm

Scanning Galvanometer: High Speed Scanning Galvanometer

Parts Scanning Speed: 1.0~2.0m/s (recommended)

Blank Jumping Speed: 10.0m/s (recommended)

Reference Building Speed: 2~15cm³/h

SHIELD SYSTEM

Protective gas: N2 / Ar(Active metal materials must be protected with Ar)

Flow Control: 0~3 L/min intellient adjustment

dust extraction control: High efficiency Protection recycling system

BUILD VAT

Volume: Approx. 5L

XY Platform: 160mm(X) × 160mm(Y) (Screw hole, rounded, etc. are not calculated)

Z Axis; 230mm(Including substrate thickness)

Max Weight: 20kg

Type: Precision resistor heater

Materials: Stainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.

SOFTWARE

Operating System: Windows 10Pro

Network: Ethernet, TCP/IP, IEEE802.3

Control Software: iSLM(Presto SLM)

Date Preparation Software: 3dLayer

Data Interface: CLI file, SLC file, STL file

INSTALLATION CONDITION

Power: 380V,AC 50/60Hz, three-phase, 30A,≤8KW

Ambient Temperature: 20-26ºC

Relative Humidity: Less than 40%, non-condensing

Size: 1.10m(W)×1.30m(D)×1.85m(H)(Operating computer is not included)

Weight: Approx. 1000kg

WARRANTY

Laser: 5000 hours or 12 months (whichever comes first)

Main Machine: Two (2) from installation date
