Industrial 3D Printers

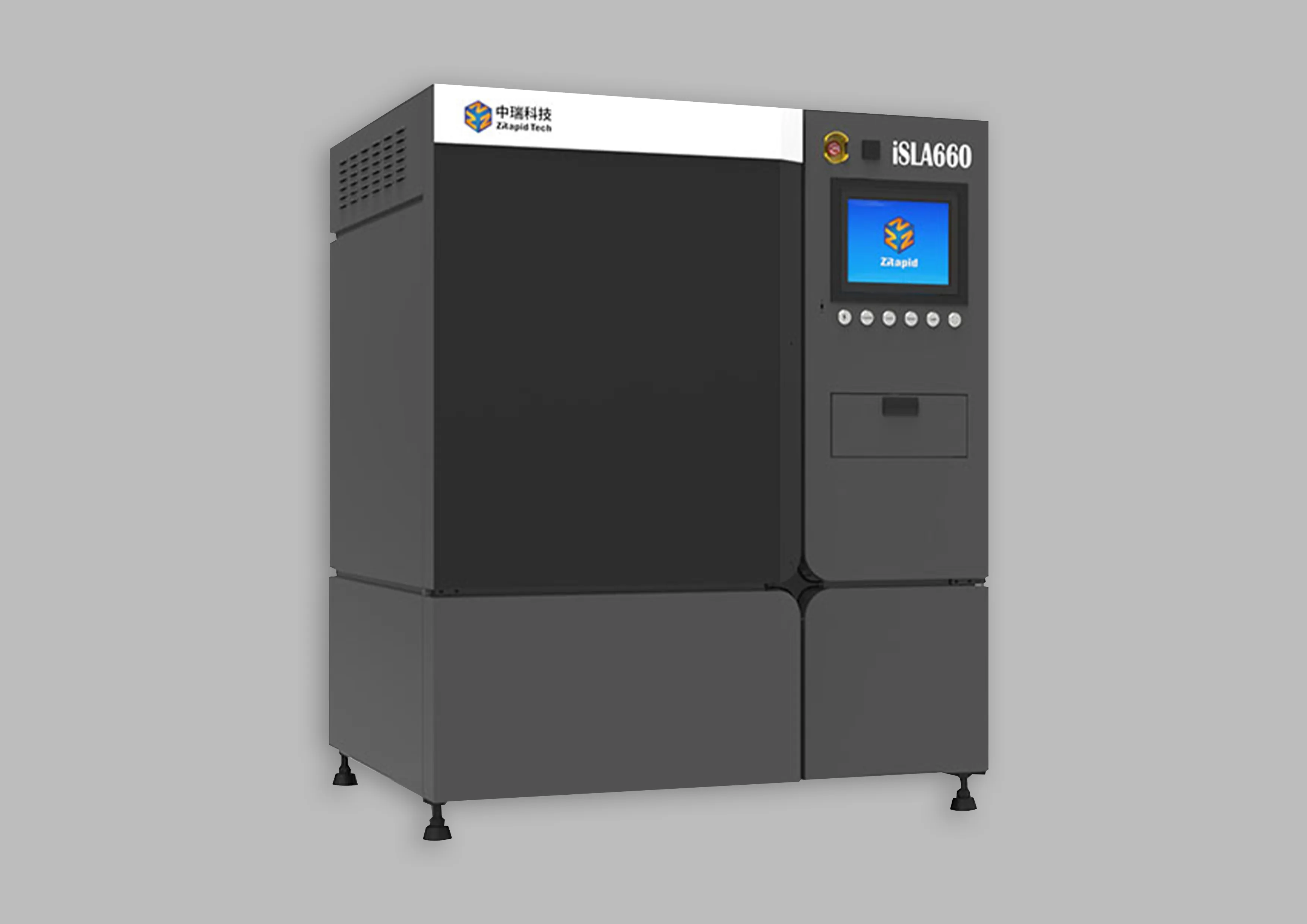

SLA - 660

Stereolithography

SLA (Stereolithography) is an additive manufacturing process that works by focusing an UV laser on to a vat of photopolymer resin. With the help of computer aided manufacturing or computer aided design(CAM/CAD) software, the UV laser is used to draw a pre-programmed design or shape on to the surface of the photopolymer vat. Photopolymers are sensitive to ultraviolet light, so the resin is photochemically solidified and forms a single layer of the desired 3D object. This process is repeated for each layer of the design until the 3D object is complete.

Materials:

ZR680 (Accurate & White), ZR710 (Tough & White), ZR820 (High Transparency)

Technical Information

LASER SYSTEM

Type: Diode-pumped solid-state laser Nd:YVO₄

Wavelength: 354.7nm

Power: 1000/2000/3000mW

RECOATING SYSTEM

Process: Intelligent positioning - Vacuum press recoat

Normal Build: 0.1mm

Quick Build: 0.1~0.15mm

Precision Build: 0.05~0.1mm

OPTICAL & SCANNING

Beam (diameter@1/e2): 0.10~0.50mm

Scanning Galvanometer: High Speed Scanning Galvanometer

Parts Scanning Speed: 6.0m/s (recommended)

Blank Jumping Speed: 10.0m/s (recommended)

Reference Building Speed: 50~180g/h

ELEVATOR

Position repeatability: ±0.01mm

Elevator Motor: High Accuracy Servo Motor

Benchmark Platform: marble benchmark platform

RESIN VAT

Volume: Approx. 200L@200mm(Z)

XY Platform: 600mm(X)×600mm(Y)

Z Axis: 400mm

Max Weight: 80kg@400mm(Z)

Resin heated style: Hot air

Photopolymer Resin: ZR680( Accurate & White ) ZR710( Tough & White ) ZR820( High Transparency )

SOFTWARE

OS: Windows 10 Pro

Network: Ethernet, TCP/IP, IEEE802.3

Control Software: iSLA(ZERO 5.0)

Date Preparation Software: 3dLayer

Data Interface: CLI file, SLC file, STL file

INSTALLATION CONDITION

Power: 200~240VAC AC 50/60Hz, single-phase, 5/10AMPS

Ambient Temperature: 20-26ºC

Relative Humidity: Less than 40%, non-condensing

Size: 1.60m(W)×1.30m(D)×1.90m(H)

Weight: Approx. 900kg

WARRANTY

Laser: 5000 hours or 12 months (whichever comes first)

Main Machine: 12 months from installation date
