Industrial 3D Printers

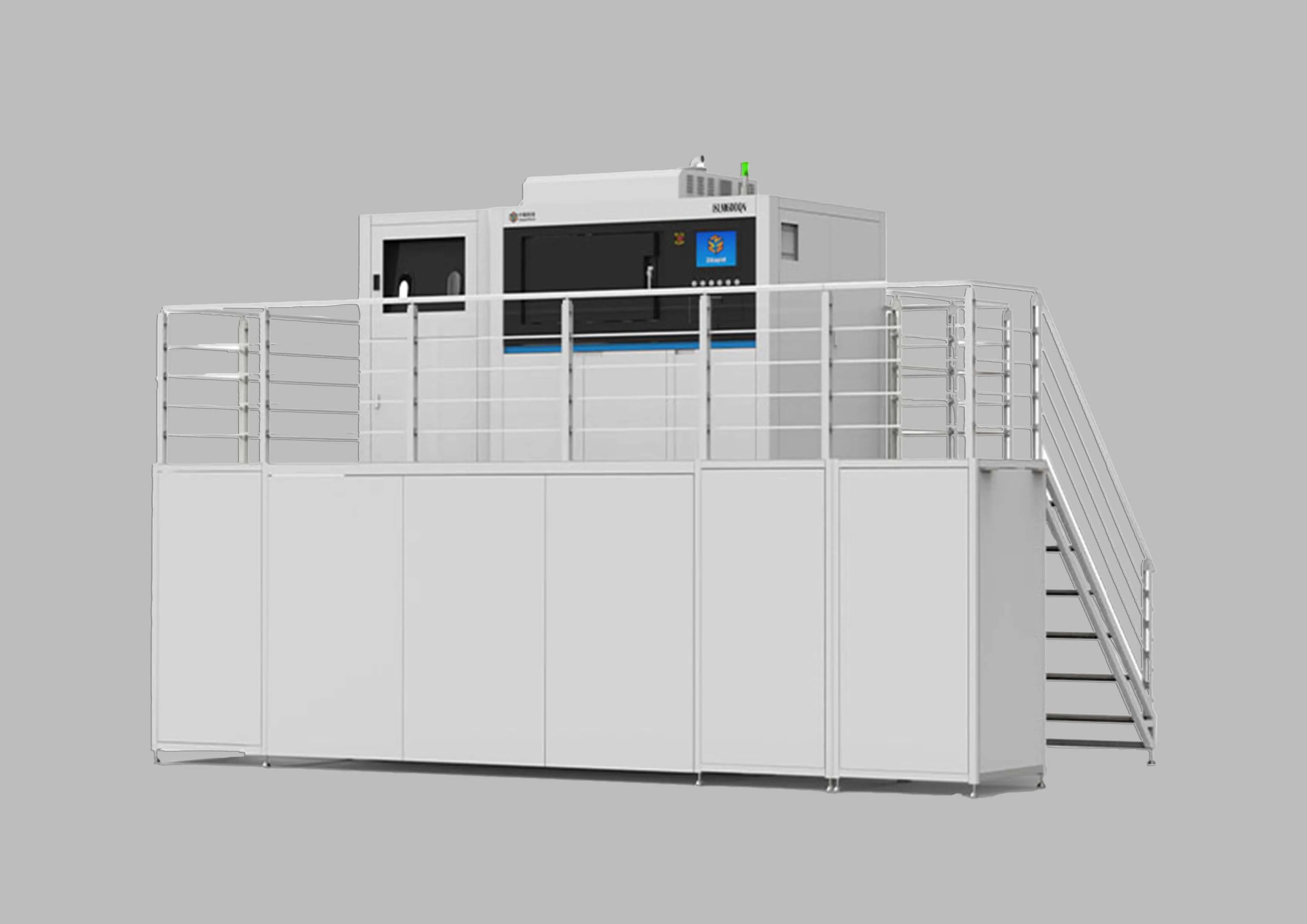

SLM - 600F

Selective Laser Melting

The SLM 600F 3D printer utilizes Selective Laser Melting (SLM) technology, a process that involves melting metal powders and solidifying them layer by layer to create three-dimensional parts. Within the build chamber, a metal powder layer is evenly spread by a roller. A high-powered laser selectively fuses the powder by tracing the part's cross-section on the powder bed's surface. Subsequently, a new layer of material is applied for the next stage. To prevent unwanted reactions between the metal powder and oxygen at high temperatures, the entire process takes place in a controlled environment, typically within a high vacuum or a chamber filled with protective gas.

Technical Information


Type: Fiber laser x 4

Wavelength: 1064nm

Power: (500W/1000W) x 4


Process: bi-directional scraper paving

Powder supply: Dropping type, circulating automatic powder supply system

Normal Build: 0.05mm

Quick Build: 0.05~0.15mm

Precision Build: 0.02~0.05mm


Beam (diameter@1/e2): 0.06~0.20mm

Scanning Galvanometer: High Speed Scanning Galvanometer x 4

Parts Scanning Speed: 4.0m/s (recommended)

Blank Jumping Speed: 10.0~28.0m/s (recommended)


Protective gas: N2 / Ar(Active metal materials must be protected with Ar)

Flow Control: 0~3 L/min intellient adjustment

dust extraction control: High efficiency Protection recycling system


Volume: Approx. 360L

XY Platform: 600mm(X) × 600mm(Y) (Screw hole, rounded, etc. are not calculated)

Z Axis; 1000mm(Including substrate thickness)

Max Weight: 300kg

Type: Precision resistor heater

Materials: Stainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.


Operating System: Windows 10Pro

Network: Ethernet, TCP/IP, IEEE802.3

Control Software: iSLM(Presto SLM)

Date Preparation Software: 3dLayer

Data Interface: CLI file, SLC file, STL file


Power: 380V(±10%) AC 50/60Hz, single-phase, 5/20A

Ambient Temperature: 20-26ºC

Relative Humidity: Less than 40%, non-condensing

Size: 3.30m(W)×1.65m(D)×4.05m(H)(Operating computer is not included)

Weight: Approx. 8500kg


Laser: 8000 hours or 23 months (whichever comes first)

Main Machine: Two (2) from installation date
