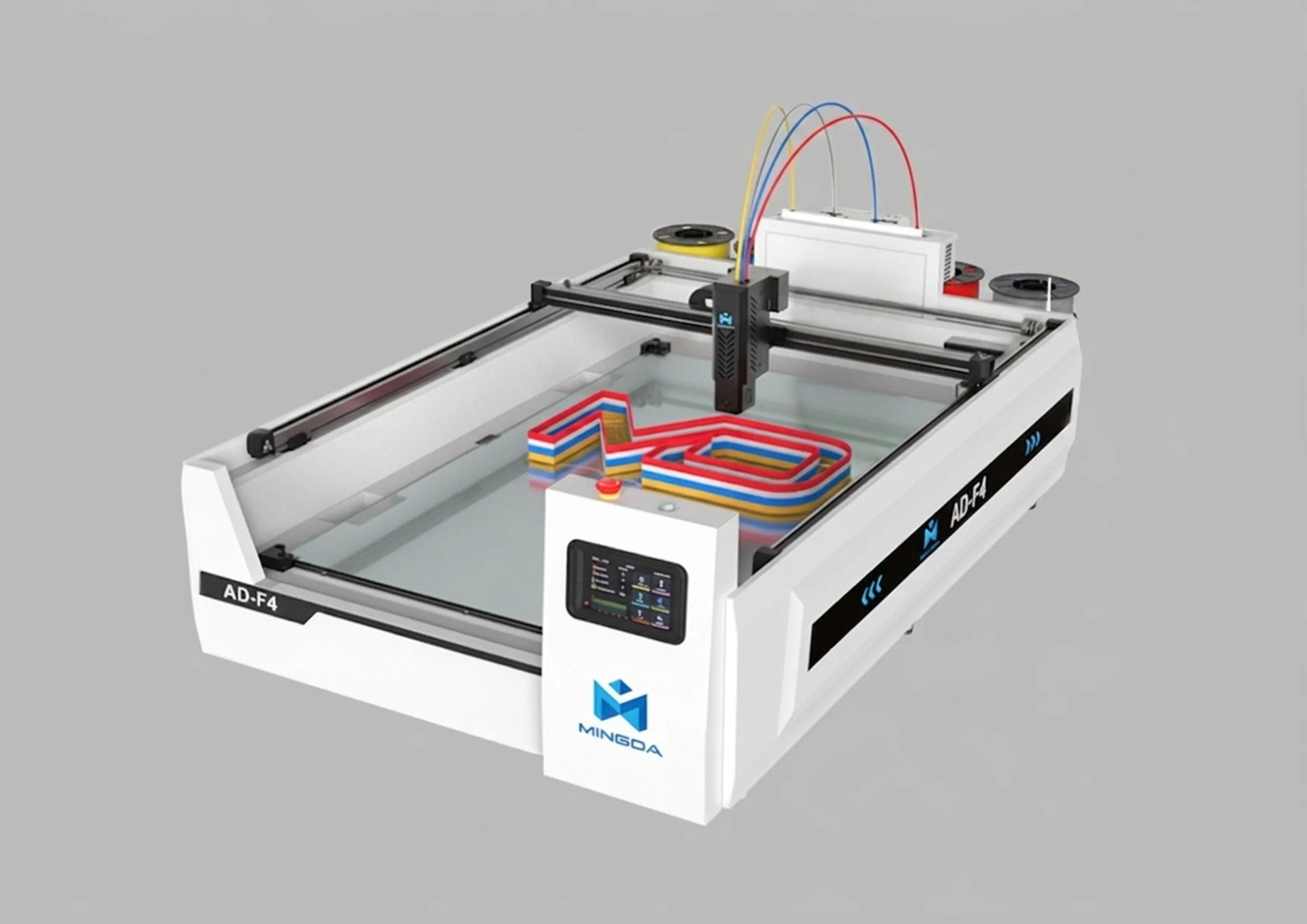

The MINGDA AD-F4 is a high-performance industrial FDM 3D printer designed for efficient large-scale manufacturing, rapid prototyping, and multi-color printing applications. Featuring a massive 1200 × 800 × 100 mm build volume and a 4-color automatic filament switching system, the AD-F4 delivers high-speed, stable, and precise printing performance for industrial production environments.
Equipped with advanced remote monitoring and control capabilities, gravity-sensing auto-leveling, and intelligent filament management, the AD-F4 ensures smooth and uninterrupted printing operations. Its ultra cost-effective design makes it ideal for efficient batch production and large-format printing projects.
| SOFTWARE |
Slicing Software: MINGDA Slicer Supported Data Formats: .3mf, .stl, .stp, .step, .amf, .obj Operating System: Windows / Mac OS |
|---|---|
| SAFETY & CERTIFICATION |
Safety Design: Warning light, Emergency stop button Regulatory Certification: CE, FCC |
| MACHINE SYSTEM |
Maximum Power: 220V / 2700W Firmware: Klipper Data Connection: U-Disk, WiFi, Ethernet Operation Screen: 7-inch touch screen Build Plate: Tempered Glass Platform Cooling System: Air-cooled Filament Tray Design: Folding filament tray Moving Speed: Max XY 500mm/s, Max Z 15mm/s Machine Dimensions: Length 1109 × Width 1695 × Height 636 mm Package Weight: 165KG Resolution: XY: 20μm | Z: 10μm Machine Dimensions: 1710 × 1365 × 1665mm Weight: Approx. 526kg |
| Technical Principle |
FFF (Fused Filament Fabrication) |
| Printing Size |
1200 × 800 × 100 mm |
| Layer Height |
0.2–0.42 mm (Layer height determined by nozzle size) |
| Printing Nozzle |
4 in 1 out |
| Filament Diameter |
1.75mm |
| Maximum Printing Speed |
0.4 mm nozzle: Max 300 mm/s |
| Nozzle Diameter |
0.6 mm (Optional: 0.4 mm / 0.8 mm) |
| Leveling Method |
Gravity-sensing auto-leveling |
| Filament Types |
PLA, PETG, PETG-CF, PET-CF/GF, HtPA-CF/GF, PA12-CF, HtPA-GF25/CF25, S-Multi, S-HtPA etc. |
| Nozzle Temperature |
Max 300°C |
| Hot Bed Temperature |
Max 60°C |
| Intelligent Features |
Filament break detection, power-off resume printing |
