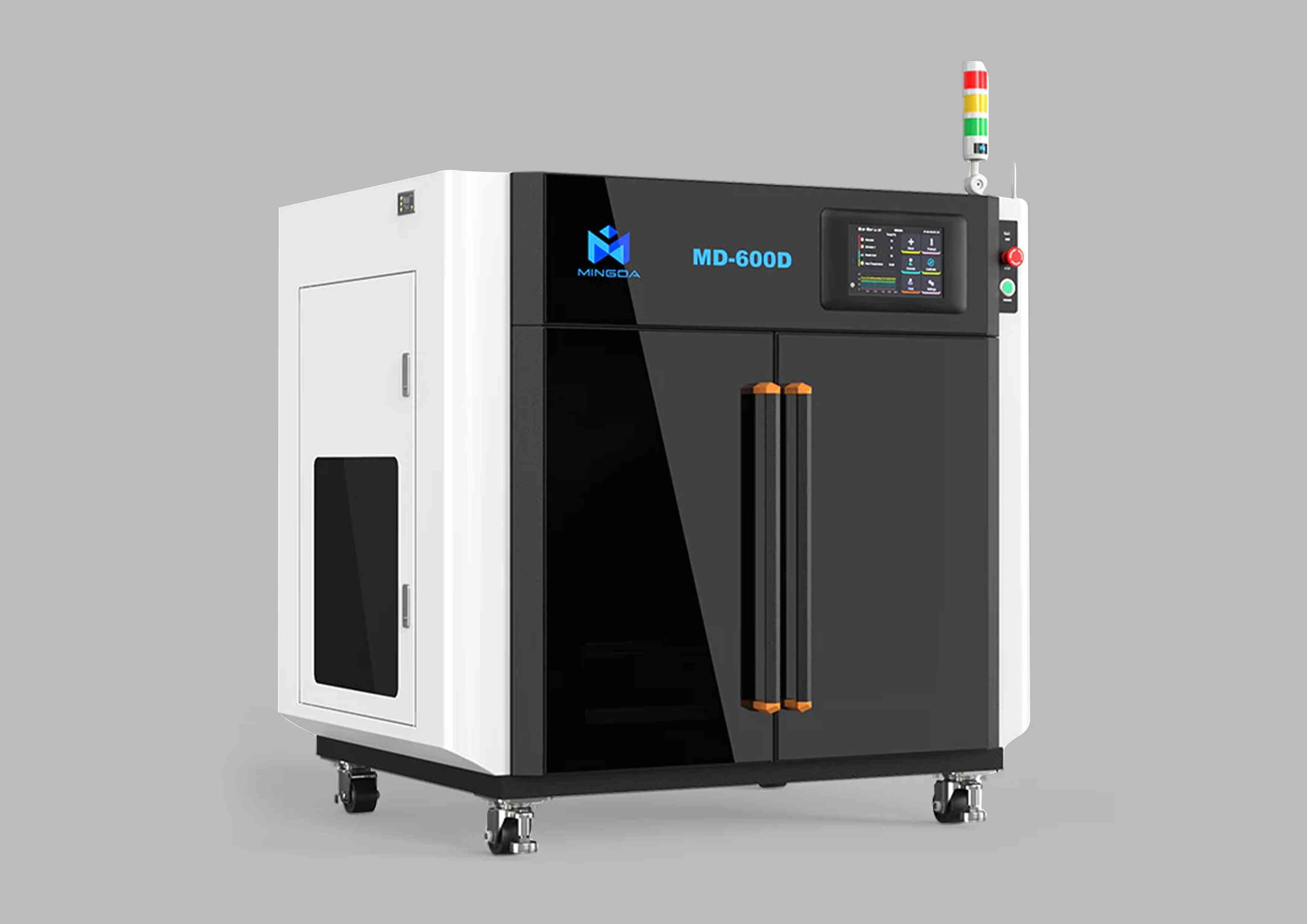

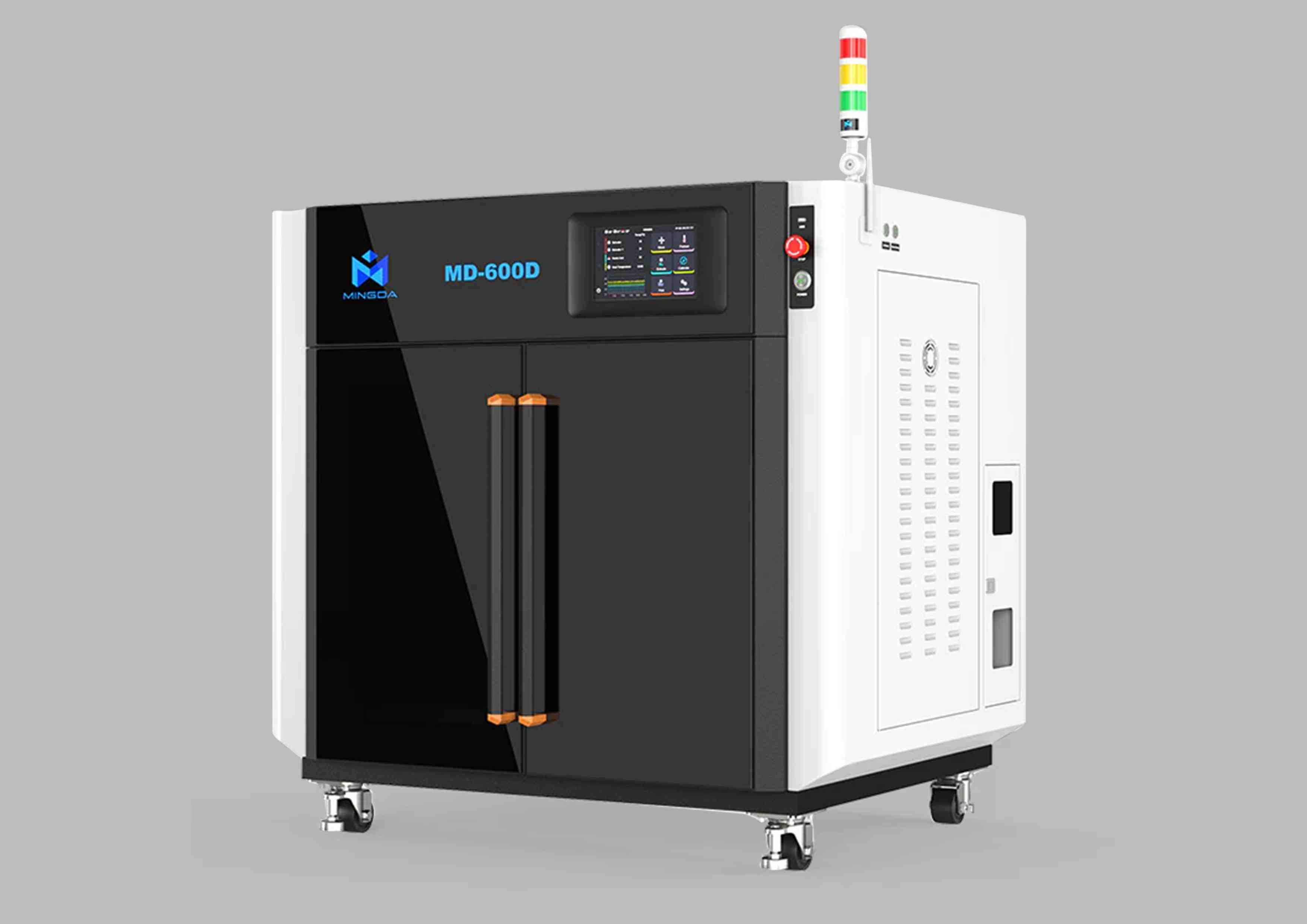

The MINGDA MD-600D is a high-performance industrial FDM 3D printer built for large-scale prototyping, tooling, functional parts, and production-grade applications. Featuring a spacious 600 × 600 × 600 mm build volume and high-speed printing up to 300 mm/s, the MD-600D delivers precision, reliability, and efficiency for industrial manufacturing environments.
Designed with dual extruders, intelligent remote monitoring, and a high-temperature hot end reaching 350°C, the printer supports a wide range of engineering-grade materials including carbon-fiber and glass-fiber reinforced filaments. Its enclosed build chamber, closed-loop control system, and auto-leveling technology ensure stable printing quality even for large and complex parts.
| SOFTWARE |
Slicing Software: MINGDA Slicer Supported Data Formats: .3mf, .stl, .stp, .step, .amf, .obj Operating System: Windows / Mac OS |
|---|---|
| SAFETY & CERTIFICATION |
Safety Design: Three-color Warning Light, Emergency Stop Regulatory Certification: CE Certified |
| MACHINE SYSTEM |
Maximum Power: 2400W Firmware: Klipper Connection: WiFi, Ethernet, USB Display Screen: 10-inch Color Touch Screen Printing Platform: 10mm Thick Aluminum Plate + Magnet + PEI Printing Chamber: Enclosed Chassis Motion System: Closed-loop Control System Cooling System: Air-cooled Filament Chamber Design: Moisture-proof filament chamber with auxiliary feeding Moving Speed: Max XY 500mm/s, Max Z 15mm/s Resolution: XY: 20μm | Z: 10μm Machine Dimensions: 1325 × 965 × 1265mm Weight: Approx. 325kg |
| Technical Principle |
FDM (Fused Deposition Modeling) |
| Printing Size |
600 × 600 × 600mm |
| Layer Height |
0.3~0.36mm |
| Printing Nozzle |
Dual Nozzle |
| Filament Holder |
2 (Max 3kg/pcs) |
| Filament Diameter |
1.75mm |
| Maximum Printing Speed |
300mm/s (Recommended: PLA 200mm/s, PETG 180mm/s, PET-CF 100mm/s) |
| Nozzle Diameter |
0.6mm (Optional: 0.4mm / 0.8mm) |
| Leveling Method |
Free Auto-Leveling |
| Filament Types |
PLA, PETG, PETG-CF, PET-CF/GF, HtPA-CF/GF, PA12-CF, HtPA-GF25/CF25, S-Multi, S-HtPA etc. |
| Nozzle Temperature |
Max 350°C |
| Hot Bed Temperature |
Max 110°C |
| Chamber Temperature |
45°C |
