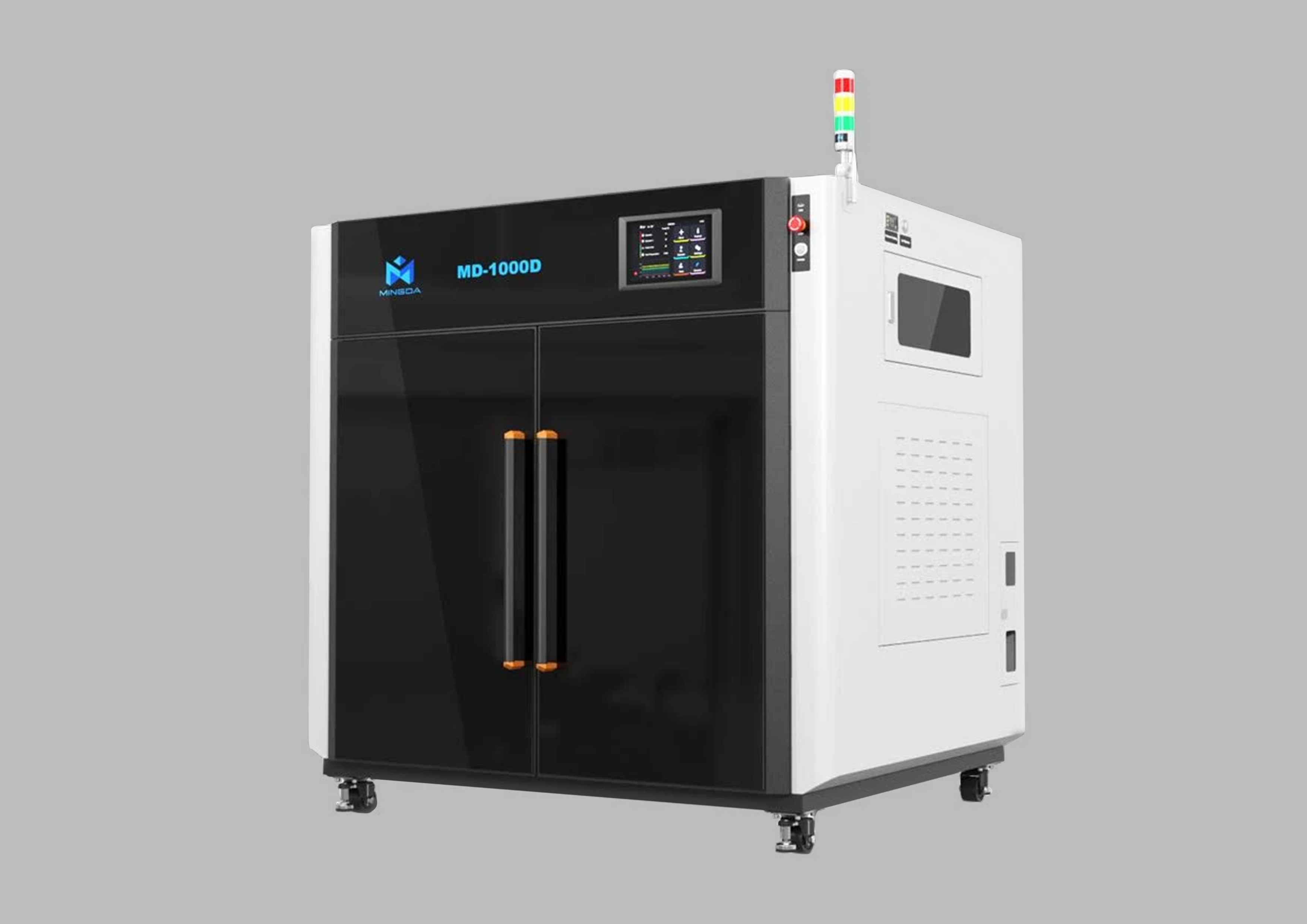

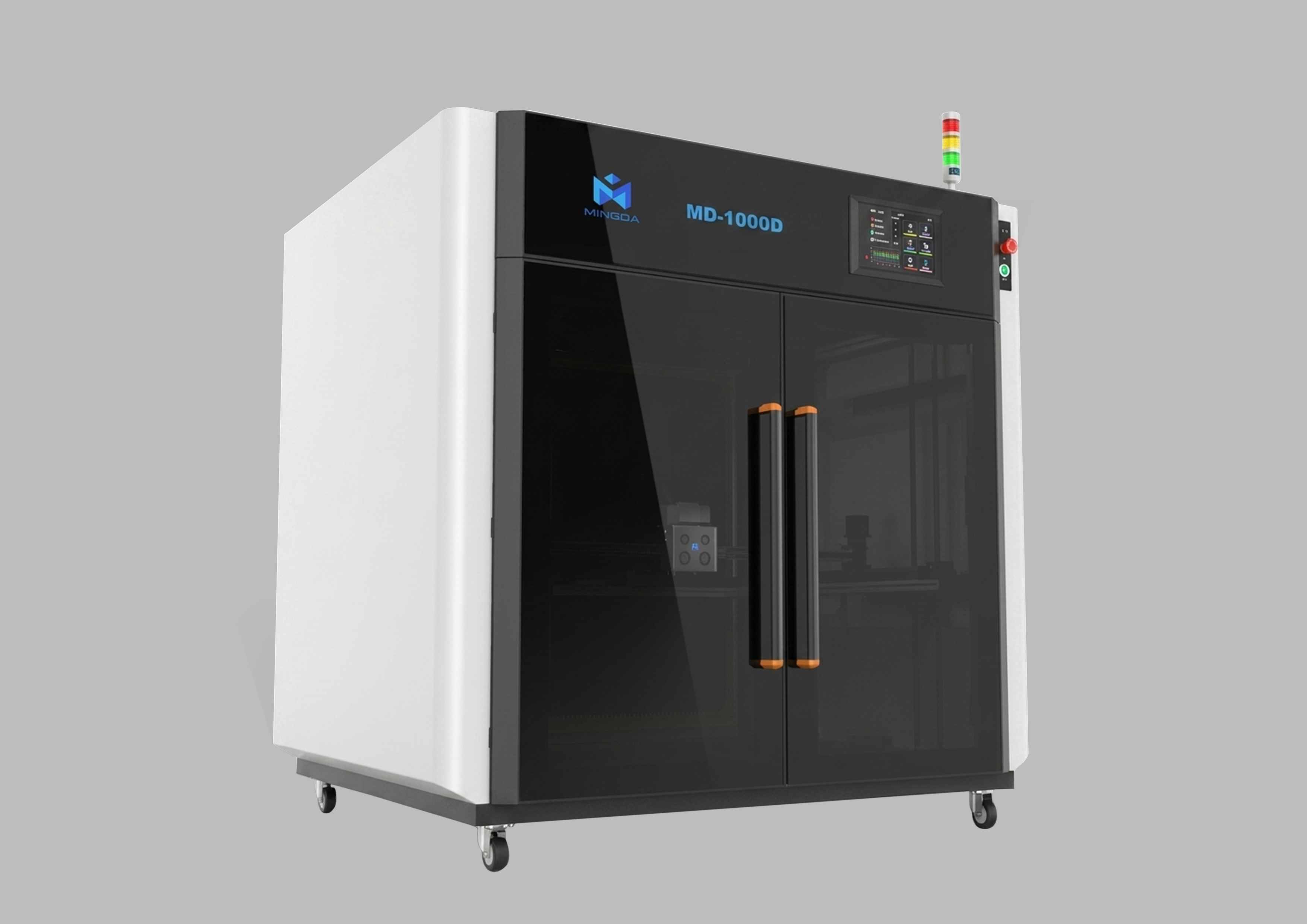

The MINGDA MD-1000D is an industrial-grade large-format FDM 3D printer designed for high-speed, high-precision manufacturing of large components and functional prototypes. Equipped with a massive 1000 × 1000 × 1000 mm build volume, dual extruders, and high-temperature printing capability up to 350°C, the MD-1000D is engineered for demanding industrial applications including automotive, aerospace, tooling, prototyping, and new energy component manufacturing.
The printer features a fully enclosed chamber, intelligent remote monitoring, auto-leveling, and a closed-loop motion control system to ensure stable and reliable printing performance. With support for advanced engineering materials such as PET-CF, PA12-CF, HtPA-CF/GF, and PETG-CF, the MD-1000D delivers exceptional strength, dimensional stability, and production efficiency for industrial-scale additive manufacturing.
| SOFTWARE |
Slicing Software: MINGDA Slicer Supported Data Formats: .3mf, .stl, .stp, .step, .amf, .obj Operating System: Windows / Mac OS |
|---|---|
| SAFETY & CERTIFICATION |
Safety Design: Three-color Warning Light, Emergency Stop Regulatory Certification: CE Certified |
| MACHINE SYSTEM |
Maximum Power: 3100W Firmware: Klipper Connection: WiFi, Ethernet, USB Display Screen: 10-inch Color Touch Screen Printing Platform: 10mm Thick Aluminum Plate + Magnet + PEI Printing Chamber: Enclosed Chassis Motion System: Closed-loop Control System Cooling System: Air-cooled Filament Chamber Design: Moisture-proof filament chamber with auxiliary feeding Moving Speed: Max XY 500mm/s, Max Z 15mm/s Resolution: XY: 20μm | Z: 10μm Machine Dimensions: 1710 × 1365 × 1665mm Weight: Approx. 526kg |
| Technical Principle |
FDM (Fused Deposition Modeling) |
| Printing Size |
1000 × 1000 × 1000mm |
| Layer Height |
0.4~0.48mm |
| Printing Nozzle |
Dual Nozzle |
| Filament Holder |
2 (Max 3kg/pcs) |
| Filament Diameter |
1.75mm |
| Maximum Printing Speed |
300mm/s (Recommended: PLA 200mm/s, PETG 180mm/s, PET-CF 100mm/s) |
| Nozzle Diameter |
0.6mm (Optional: 0.4mm / 0.8mm) |
| Leveling Method |
Free Auto-Leveling |
| Filament Types |
PLA, PETG, PETG-CF, PET-CF/GF, HtPA-CF/GF, PA12-CF, HtPA-GF25/CF25, S-Multi, S-HtPA etc. |
| Nozzle Temperature |
Max 350°C |
| Hot Bed Temperature |
Max 110°C |
| Chamber Temperature |
45°C |
