Industrial 3D Printers

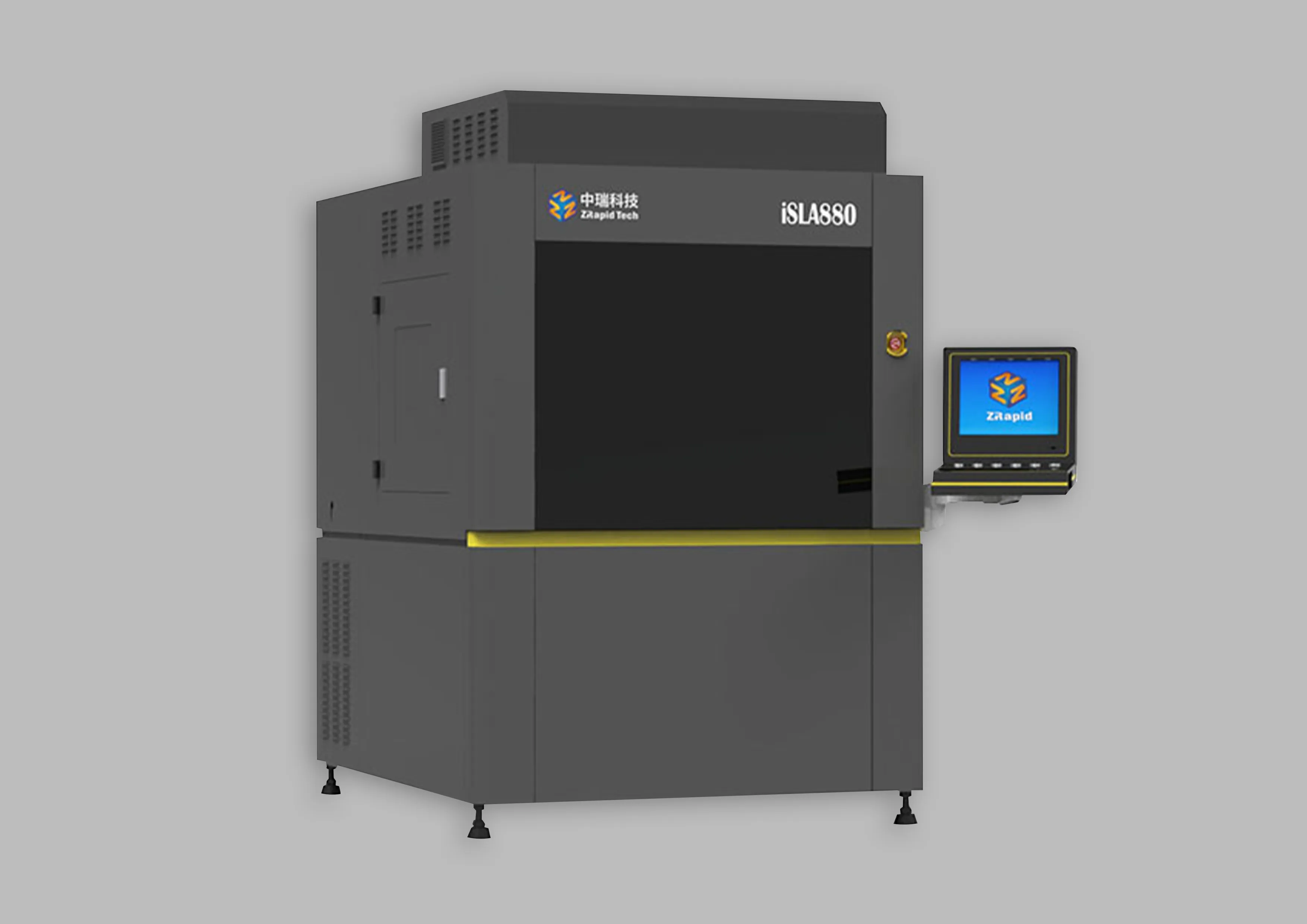

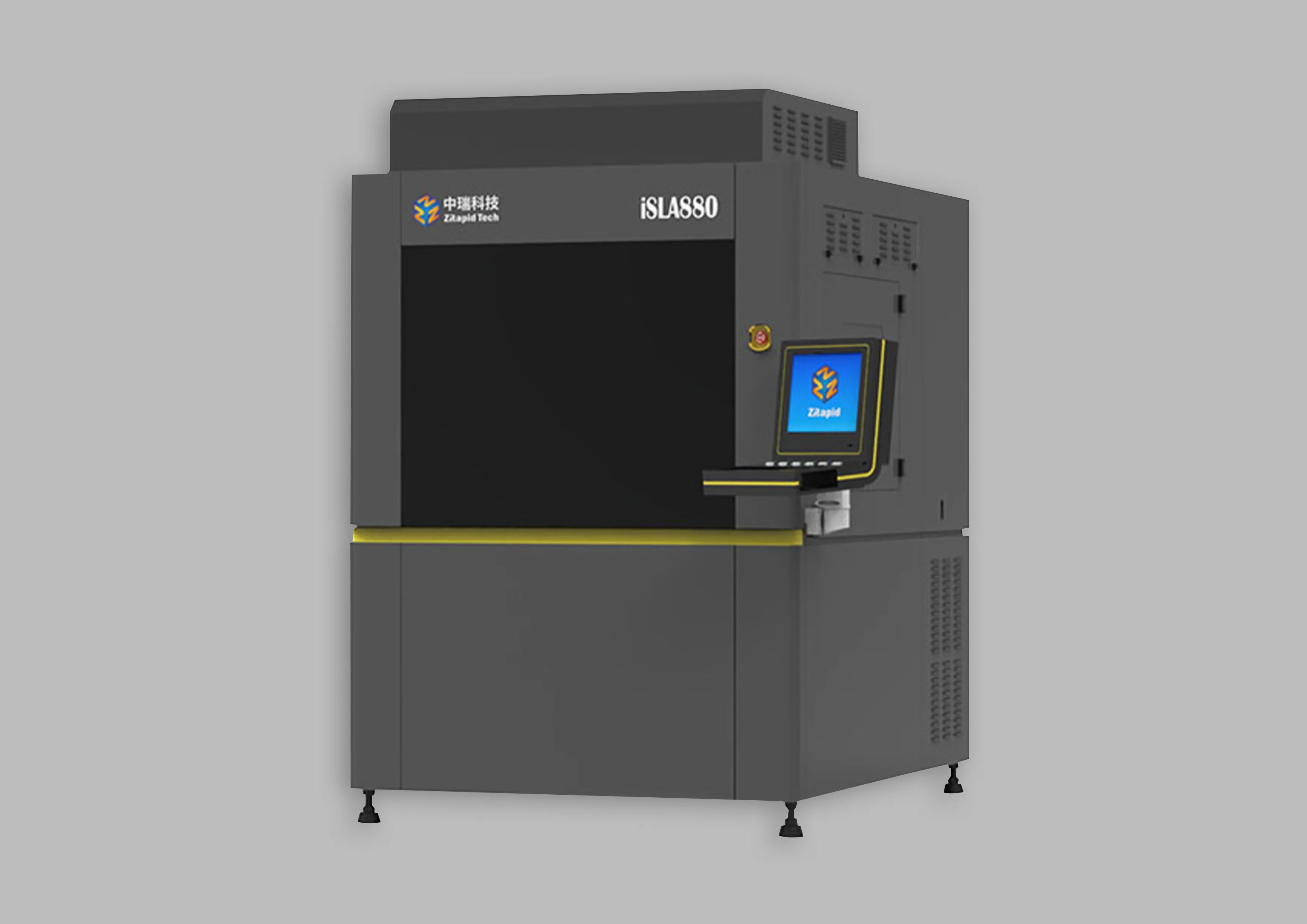

SLA - 880

Stereolithography

The SLA 880 machine utilizes Stereolithography (SLA), an additive manufacturing method that employs an ultraviolet (UV) laser to precisely target a reservoir of photopolymer resin. This sophisticated system integrates computer-aided design (CAD) software to guide the UV laser in tracing a pre-defined design onto the resin's surface. As photopolymers are exposed to UV light, they undergo photochemical solidification, enabling the formation of one layer of the intended 3D object. This layer-by-layer process is meticulously repeated until it completes the fabrication of the entire 3D object.

Materials:

ZR680 (Accurate & White), ZR710 (Tough & White), ZR820 (High Transparency)

Technical Information

LASER SYSTEM

Type: Diode-pumped solid-state laser Nd:YVO₄

Wavelength: 354.7nm

Power: 1000/2000/3000mW

RECOATING SYSTEM

Process: Intelligent positioning - Vacuum press recoat

Normal Build: 0.1mm

Quick Build: 0.1~0.15mm

Precision Build: 0.05~0.1mm

OPTICAL & SCANNING

Beam (diameter@1/e2): 0.10~0.50mm

Scanning Galvanometer: High Speed Scanning Galvanometer

Parts Scanning Speed: 6.0m/s (recommended)

Blank Jumping Speed: 10.0m/s (recommended)

Reference Building Speed: 90~220g/h

ELEVATOR

Position repeatability: ±0.01mm

Elevator Motor: High Accuracy Servo Motor

Benchmark Platform: marble benchmark platform

RESIN VAT

Volume: Approx. 450L@400mm(Z)

XY Platform: 800mm(X)×800mm(Y)

Z Axis: 550mm

Max Weight: 100kg@400mm(Z)

Resin heated style: Hot air

Photopolymer Resin: ZR680( Accurate & White ) ZR710( Tough & White ) ZR820( High Transparency )

SOFTWARE

OS: Windows 10 Pro

Network: Ethernet, TCP/IP, IEEE802.3

Control Software: iSLA(ZERO 5.0)

Date Preparation Software: 3dLayer

Data Interface: CLI file, SLC file, STL file

INSTALLATION CONDITION

Power: 200~240VAC AC 50/60Hz, single-phase, 5/10AMPS

Ambient Temperature: 20-26ºC

Relative Humidity: Less than 40%, non-condensing

Size: 1.50m(W)×1.40m(D)×2.20m(H)

Weight: Approx. 1000kg

WARRANTY

Laser: 5000 hours or 12 months (whichever comes first)

Main Machine: 12 months from installation date
